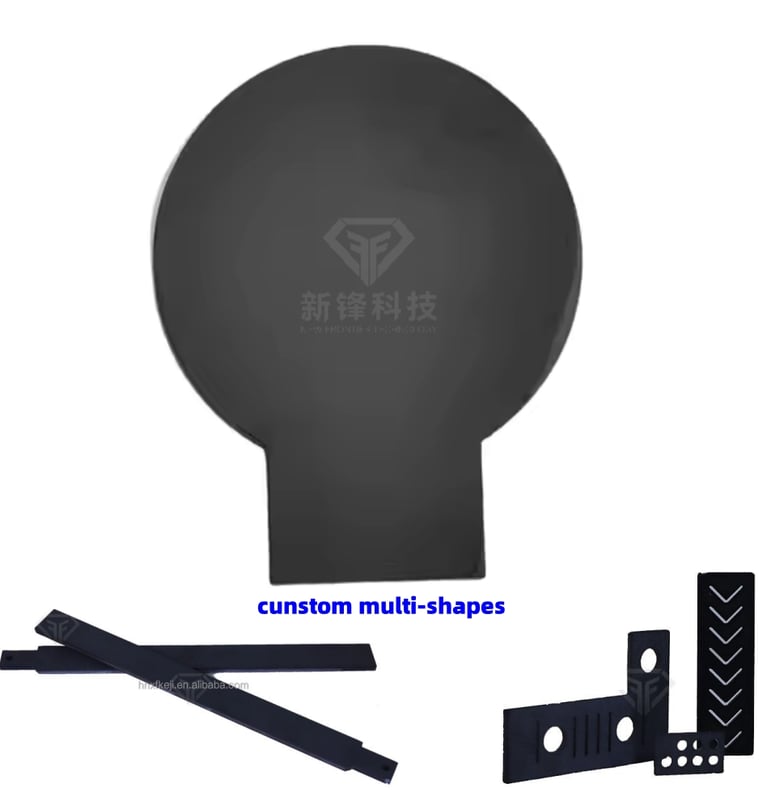

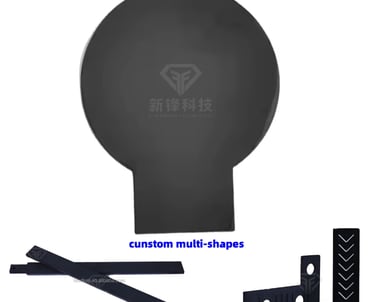

Multi-shape BDD Electrode

Short Description:

Through innovative breakthroughs in boron-doped diamond (BDD) thin-film technology and solutions to traditional technical challenges, we've developed a new generation of high-performance BDD electrode materials available in multiple specifications. This achievement results from our rigorous manufacturing process featuring precise pretreatment, controlled plating parameters, and optimized post-plating treatments.

Main features:

◎ Widest electrochemistry window
◎ Extremely high oxygen evolution potential
◎ Extremely high hydrogen evolution potential
◎ Strong acid and alkali corrosion resistance
◎ Inert anodes do not consume

Application areas: in the product details section

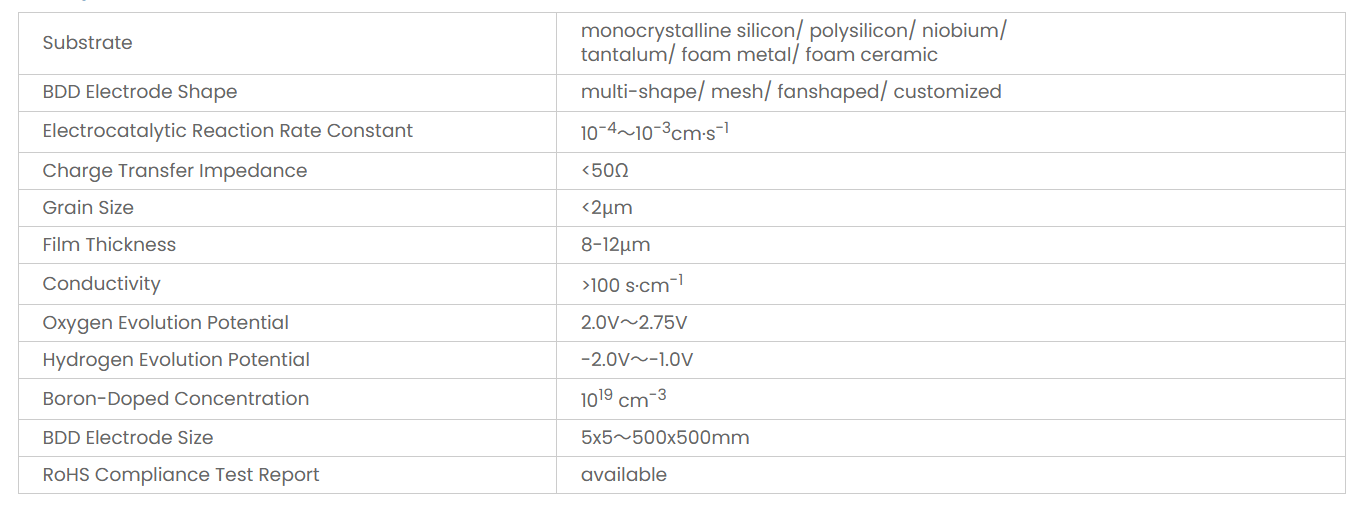

Technical Parameters:

Application areas:

Research shows, BDD electrodes can effectively degrade pollutants in various organic wastewaters:

Intermediate / Papermaking / Pesticide / Leather / Petrochemical / Lithium Battery / Coking / Wine / Smelting / Landfill Leachate / Printing & Dyeing / Others

◎ Extraction agents, such as P204, P507, etc., are mainly used in the lithium battery recycling industry.

◎ Aromatic compounds, heterocyclics and other organic compounds, such as tetrahydrofuran in PT wastewater, are mainly used in the petroleum and coal chemical industries.

◎ Pharmaceutical intermediates, such as pyridine, are mainly used in the pharmaceutical industry.

◎ Phenols, alcohols, esters, such as special phenols, special alcohols, special esters, acetone, etc., are mainly used in the petrochemical industry.

◎ High organic acid wastewater is mainly used in the petrochemical catalyst industry.

◎ Organic solvents such as dichloromethane, chloroform, tetrahydrozoline, etc. are mainly used in the pesticide production industry.

◎ Humic acid in landfill leachate.
